Snowstorm Filling (SSF) Loading Method

Loading Technique for CMS in PSA Nitrogen Systems

The Snowstorm Filling (SSF) Loading Method is a controlled dry fill technique designed for properly loading Carbon Molecular Sieve (CMS) into PSA towers. It is widely recognized for its ability to achieve uniform CMS bed formation, which directly affects system performance, nitrogen purity, and long term adsorption efficiency. SSF ensures consistent bulk density and minimizes the risk of air channeling, dead zones, and mechanical damage during the loading process.

Technical Importance in PSA Systems

In PSA nitrogen generators, CMS is the core separation media responsible for selectively adsorbing oxygen from compressed air. However, the way CMS is loaded into the towers plays a significant role in how effectively it performs over time. Improper loading such as uncontrolled free fall, layering, or vibration filling can cause non uniform packing, which leads to inconsistent flow distribution, higher pressure drop, and reduced working capacity of the CMS.

The SSF method mitigates these risks by gently dispersing CMS granules into the tower through an upward air stream that creates a fluidized “snowstorm” effect. This allows particles to settle evenly and naturally, eliminating compaction and ensuring a stable bed structure across the full height of the tower.

How SSF Supports CMS Performance

When properly applied, the SSF method enhances the working life of CMS by preventing physical stress during loading and ensuring that all sections of the bed are equally packed. This consistency improves cycle balance, helps maintain expected adsorption rates, and contributes to predictable nitrogen purity.
The process also reduces dust formation by minimizing particle collisions and shear stress. This is particularly important for high density CMS grades such as CMS 260L, which are optimized for long term performance and low attrition in PSA environments.

Engineering Benefits of SSF Loading

The use of the SSF method offers measurable improvements in tower performance and stability. Its advantages include:

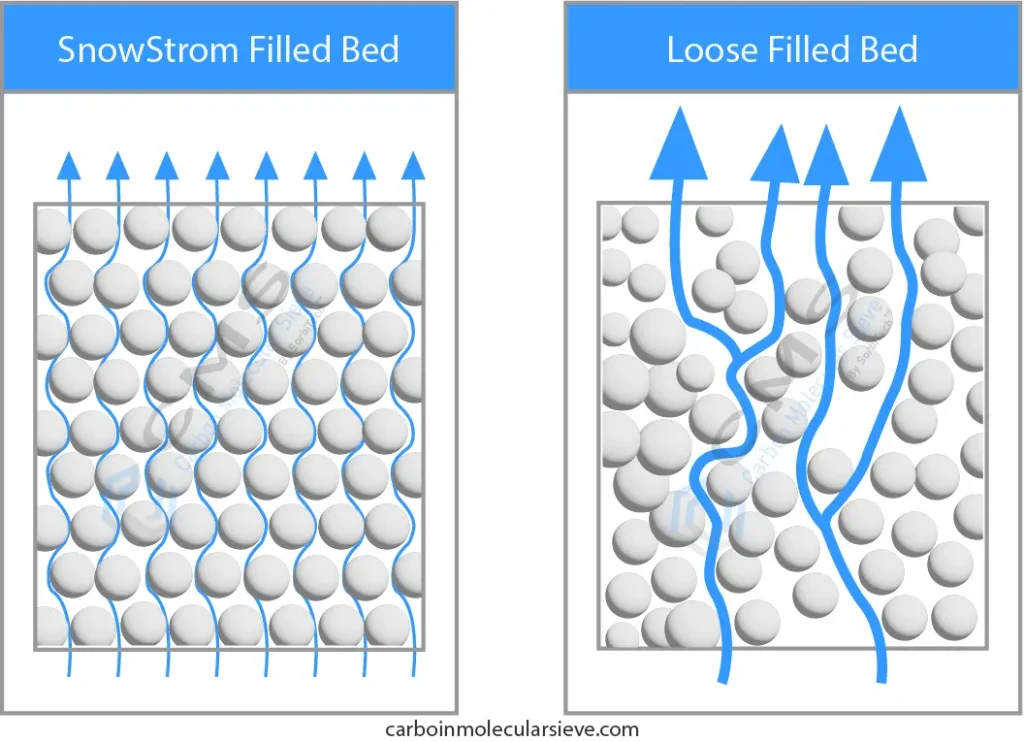

• Uniform packing density, reducing pressure variations and dead zones
• Even gas distribution, which ensures all CMS particles participate in the cycle
• Lower dust generation, resulting in cleaner operation and reduced filter maintenance
• Extended CMS lifespan, due to gentle handling and stable packing structure

This method is particularly well suited for fixed installations and high purity applications, where nitrogen output must remain consistent over time with minimal cycle drift or media loss.
